MAX4638EUE

Product Summary

The MAX4638EUE is single 8:1 CMOS analog multiplexers(muxes). Each mux operates from a single +1.8V to +5V supply. These devices feature 3.5Ω on-resistance (RON) when powered with a single +5V supply and have -75dB of off-isolation and -85dB crosstalk from the output to each off channel. The switching times are 18ns tON and 7ns tOFF. They feature a -3dB 85MHz bandwidth and a guaranteed 0.25nA leakage current at +25°C. A +1.8V to +5.5V operating range makes the MAX4638EUE ideal for battery-powered, portable instruments. All channels guarantee break-before-make switching. These parts feature bidirectional operation and can handle Rail-to-Rail® analog signals. All control inputs are TTL/CMOS-logic compatible. Decoding is in standard BCD format, and an enable input is provided to simplify cascading of devices. These devices are available in small 16-pin QFN, TSSOP and SOIC packages, as well as a 20-pin QFN package.

Parametrics

Absolute maximum ratings:(1)V+ to V-: +6V; (2)V+, A_, EN: -0.3V to +6V; (3)V-: +0.3V to -6V; (4)NO_, COM: -0.3V to (V+ + 0.3V); (5)Continuous Current A_, EN: ±30mA; (6)Continuous Current NO_, COM: ±100mA; (7)Peak Current (NO_, COM_) (pulsed at 1ms, 10% duty cycle): ±200mA; (8)16-Pin QFN (derate 18.5mW/°C above +70°C): 1481mW; (9)16-Pin TSSOP (derate 5.7mW/°C above +70°C): 457mW; (10)16-Pin SO (derate 8.70mW/°C above +70°C): 696mW; (11)20-Pin QFN (derate 20mW/°C above +70°C): 1600mW; (12)Operating Temperature Range : -40°C to +85°C; (13)Junction Temperature: +150°C; (14)Storage Temperature Range: -65°C to +150°C; (15)Lead Temperature (soldering, 10s): +300°C.

Features

Features: (1)Guaranteed RON 3.5Ω (+5V or ±2.5V Supplies) 6Ω (+3V Supply); (2)Guaranteed 0.4Ω RON Match Between Channels; (3)Guaranteed 1Ω RON Flatness Over Signal Range; (4)Guaranteed Low Leakage Currents 0.25nA at +25°C; (5)Switching Times: tON = 18ns, tOFF = 7ns; (6)+1.8V to +5.5V Single-Supply Operation ±2.5V Dual-Supply Operation; (7)Rail-to-Rail Signal Handling; (8)TTL/CMOS-Logic Compatible; (9)Crosstalk: -80dB (1MHz); (10)Off-Isolation: -60dB (10MHz).

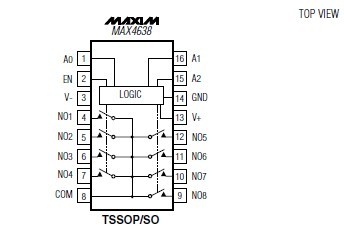

Diagrams
