Product Summary
The TDA7479D recovers the additional inaudible RDS information which is transmitted by FM radio broadcasting stations and operates in accordance with the EBU (European Broadcasting Union) specifications. The device is made up of two sections: a cascaded antialiasing + switched capacitors bandpass filter for precise RDS band selection and a demodulating section that performs the extraction od RDS data stream (RDDA) and clock (RDCL), to be furher processed by a suitable RDS decoder. Outputs for RDS signal quality and ARI indication are also present.
Parametrics
Absolute maximum ratings:(1)Supply Voltage, VS: -0.3 to 7V; (2)Operating Temperature Range, Top: -40 to 85°C; (3)Storage Temperature, Tstg: -55 to 150°C.
Features
Features: (1)very high RDS demodulation quality with improved digital signal processing; (2)high performance, 57KHz bandpass filter (8th ORDER); (3)filter adjustment free and without external components; (4)purely digital RDS demodulation without external components; (5)ARI (SK indication) and RDS signal quality output; (6)4.332MHz crystal oscillator (8.664 and 17.328MHz optional); (7)low noise CMOS technology; (8)low radiation.

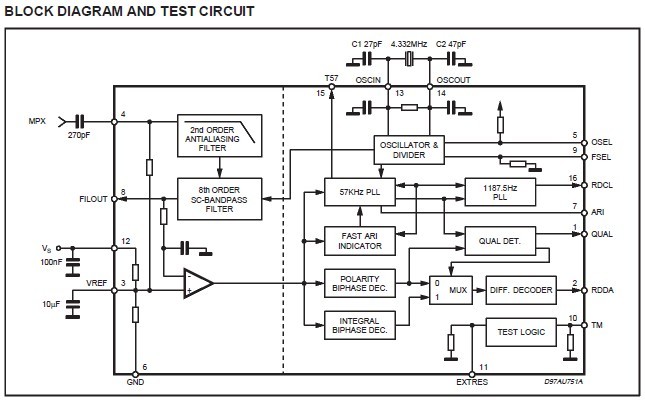

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7479D |
STMicroelectronics |
Audio DSPs Chip RDS Demodulator |
Data Sheet |
Negotiable |
|
||||
|
TDA7479DTR |
STMicroelectronics |
RF Wireless Misc SINGLE CHIP DEMOD |
Data Sheet |
Negotiable |
|
||||
