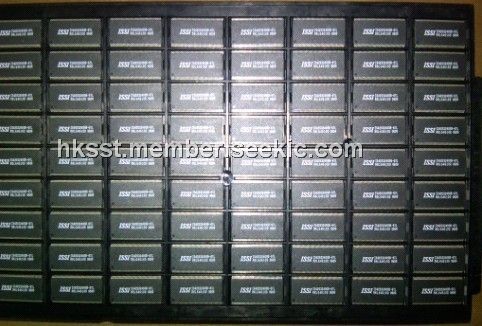

IS42S32400B-6TL

Product Summary

The IS42S32400B-6TL is a high speed CMOS, dynamic random-access memory designed to operate in 3.3V VDD and 3.3V VDDQ memory systems containing 134,217,728 bits. Internally configured as a quad-bank DRAM with a synchronous interface. Each 33,554,432-bit bank is organized as 4,096 rows by 256 columns by 32 bits. The IS42S32400B-6TL includes an AUTO REFRESH MODE, and a power-saving, power-down mode. All signals are registered on the positive edge of the clock signal, CLK. All inputs and outputs are LVTTL compatible. The IS42S32400B-6TL has the ability to synchronously burst data at a high data rate with automatic column-address generation, the ability to interleave between internal banks to hide precharge time and the capability to randomly change column addresses on each clock cycle during burst access.

Parametrics

Absolute maximum ratings:(1)MAX Maximum Supply Voltage, VDD: 鈥?.5 to +4.6V ; (2)MAX Maximum Supply Voltage for Output Buffer, VDDQ: 鈥?.5 to +4.6V ; (3)Input Voltage, VIN: 鈥?.5 to VDD + 0.5V ; (4)Output Voltage, VOUT: 鈥?.0 to VDDQ + 0.5V ; (5)MAX Allowable Power Dissipation, PD: 1 W ; (6)Output Shorted Current, ICS: 50 mA ; (7)Operating Temperature, Com, TOPR: 0 to +70鈩?; (8)Operating Temperature, Com, Ind: 鈥?0 to +85鈩?; (9)Storage Temperature, TSTG: 鈥?5 to +150鈩?

Features

Features:(1)Clock frequency: 166, 143, 125, 100 MHz; (2)Fully synchronous; all signals referenced to a positive clock edge; (3)Internal bank for hiding row access/precharge; (4)LVTTL interface; (5)Programmable burst length鈥?(1, 2, 4, 8, full page); (6)Programmable burst quence:Sequential/Interleave; (7)Auto Refresh (CBR); (8)Self Refresh with programmable refresh periods; (9)4096 refresh cycles every 64 ms; (10)Random column address every clock cycle; (11)Programmable CAS latency (2, 3 clocks); (12)Burst read/write and burst read/single write operations capability; (13)Burst termination by burst stop and precharge command; (14)Available in Industrial Temperature; (15)Available in 86-pin TSOP-II and 90-ball FBGA; (16)Available in Lead-free.

Diagrams

<IMG src="http://www.seekic.com/uploadfile/ic-mfg/20113222120877.jpg" border=0>
