Product Summary
The DLP31SN121ML2L is a Chip Common Mode Choke Coil.
Parametrics
DLP31SN121ML2L absolute maximum ratings: (1)Common Mode Impedance (at 100MHz/20℃): 120ohm±20%; (2)Rated Current: 100 mA; (3)Rated Voltage: 16 Vdc; (4)Insulation Resistance (min.): 100 M ohm; (5)Withstand Voltage: 40 Vdc; (6)DC Resistance: 2.0ohmmax.; (7)Operating Temperature Range: -40℃ to 85℃; (8)Number of Circuit: 1.
Features
DLP31SN121ML2L features: (1)BLM--B series – For High Speed Signal: BLM-B series can minimize attenuation of the signal waveform due to its sharp impedance characteristics. Various impedances are available to match signal frequency; (2)BLM--P/S series – For Large Current: BLM-P/S series can be used in high current circuits due to its low DC resistance. It can match power lines to a maximum of 6A DC; (3)BLM--H/E/G series – For GHz Range Noise Suppression: BLM--H/E/G series has a modified internal electrode structure that minimizes stray capacitance and increases the effective frequency range.

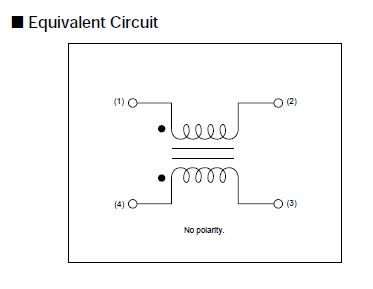

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DLP31SN121ML2L |
Murata |
Common Mode Inductors (Chokes) 1206 120ohm +/-20% 100mA DCR 2.0ohm |
Data Sheet |
|
|
||||||||||||
