Product Summary

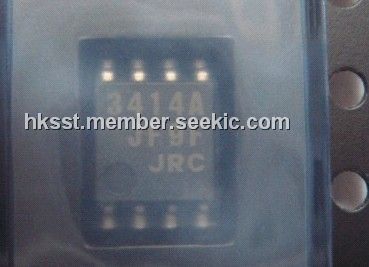

The NJM3414AM integrated circuit is a high gain, high output current, high output voltage swing dual operational amplifier capable of driving 70mA. As a single-supply dual high current operational amplifier, it is feature with wide operating voltage from 3V to 15V, high output current of 70ma, slew rate of 1.0V/μs typ. When concerned to the package outline of this product, there are DIP8, DMP8, SIP8 as well as SSOP8.
Parametrics
Absolute maximum ratings:(1)Supply Voltage, V+(V+/V-): 15V ( or ±7.5 )V ; (2)Input Voltage, VIC: -0.3 to +15V ; (3)Differential Input Voltage, VID: 15V ; (4)Power Dissipation, PD, ( DIP8 ) 500 ( DMP8 ): 300mW; (5)Power Dissipation, PD, ( SSOP8 ) 250 ( SIP8 ) 800mW ; (6)Operating Temperature Range, Topr: -20 to +75°C ; (7)Storage Temperature Range, Tstg: -40 to +125°C.
Features
Features:(1)Single Supply; (2)Operating Voltage ( +3V~+15V ); (3)High Output Current ( 70mA typ. ); (4)Slew Rate ( 1.0V/μs typ. ); (5)Package Outline DIP8,DMP8,SIP8,SSOP8; (6)Bipolar Technology.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM3414AM |
NJR |
Operational Amplifiers - Op Amps Dual High Current |
Data Sheet |
|
|
||||||||||||
 |
NJM3414AM-T1 |
NJR |
Operational Amplifiers - Op Amps Dual High Current |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM3414AM-TE1 |
NJR |
Operational Amplifiers - Op Amps Dual High Current |
Data Sheet |
|
|
||||||||||||
|
NJM3414AM-TE2 |
NJR |
Operational Amplifiers - Op Amps Dual High Current |
Data Sheet |
|
|
||||||||||||
|
NJM3414AM-TE3 |
NJR |
Operational Amplifiers - Op Amps Dual High Current |
Data Sheet |
|
|
||||||||||||
|
NJM3414AM-T2 |
NJR |
Operational Amplifiers - Op Amps Dual High Current |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM3414AM-TE4 |
NJR |
Operational Amplifiers - Op Amps Dual High Current |
Data Sheet |
Negotiable |
|
||||||||||||
